Garage Door Cable Repair in Rockville, MD

What garage door lift cables do

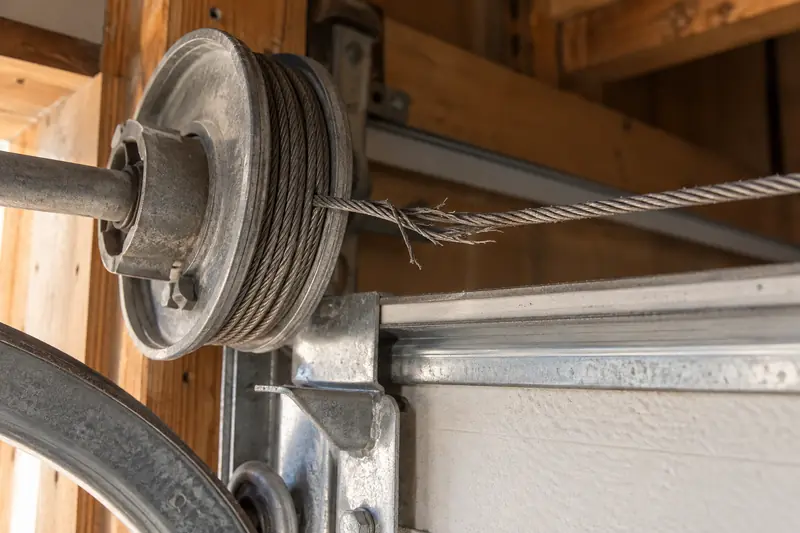

Two galvanized steel lift cables run from the bottom brackets at the lower corners of the door up to the spring system. On a torsion door, each cable wraps a grooved cable drum at the end of the spring shaft; as the springs unwind, the drums wind the cables and lift both sides evenly. On an extension-spring door, common on older detached garages in Rockville, the cables run over pulleys while the springs stretch along the horizontal tracks.

The cables carry the door's full weight on every cycle. If one fails, that side drops, the door twists in the opening and the rollers can bind or leave the track, which is why a cable problem so often becomes an off-track door.

Signs of a garage door cable problem

• A cable hanging loose or off its drum Usually a broken spring, or a cable that slipped.
• The door sits crooked One side lower than the other, often after a bang on a cold morning.
• Rusty or frayed strands at the bottom Where the cable meets the bottom bracket.
• The door jerks or stops partway A cable winding unevenly on its drum.

Do not touch a loose cable or the bottom bracket it is attached to. Both are under spring tension and can move suddenly.

Why garage door cables fail in Rockville

A spring that broke in the cold

Most loose cables start with a broken torsion spring. The spring keeps both cables tight through the drums; when it snaps on a frozen January morning, the cable on the broken side unwinds or jumps the drum. The cable may be undamaged, but it has to be rewound to the right tension once new springs are in.

Road salt at the bottom corners

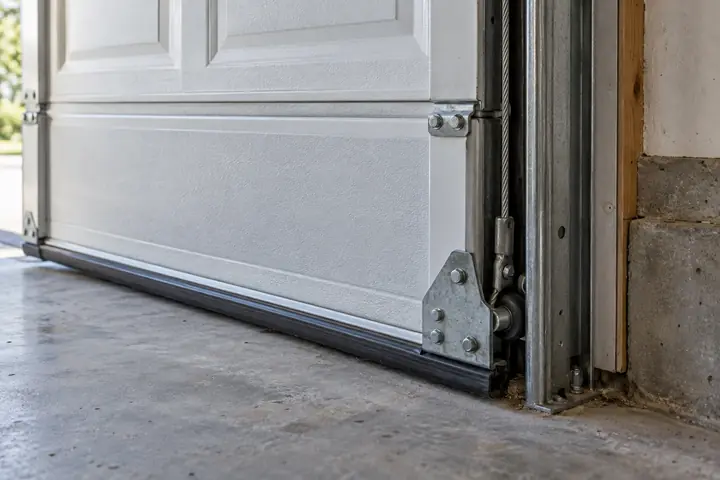

Slush from Montgomery County roads melts off the car, and the salty water sits along the slab right where the cables meet the bottom brackets. Galvanized cable rusts there from the inside out, and a bracket that rusts through can let the cable pull loose. A cable that looks dull and stiff near the bottom is often close to failing.

A door that bound in a cold track

When rollers stiffen in the cold or ice builds up at the bottom of the track, the door can hang up on one side while the other keeps moving. The cable on the stuck side goes slack and slips off the drum.

What to do before the technician arrives

• Keep people, pets and cars away from the door A door with a failed cable can drop or swing out.
• Unplug the opener Running it can bend the top section and the track.
• Leave the door where it is Do not lift it, close it or pull the manual release.
• Note which side is lower And whether you heard a bang.

How cable repair is done

1. 01

   Make the door safe

   The door is clamped and the spring tension released.

2. 02

   Replace both cables

   Cables are replaced as a pair, sized to the door's height and weight.

3. 03

   Check drums, bearings and brackets

   Cracked drums and rusted bottom brackets are priced before work.

4. 04

   Rewind and rebalance

   Even tension on both drums, springs set so the door stays put halfway up.

5. 05

   Test

   Full cycles, even lift, opener force and the safety reverse.

Cable sizes and the parts around them

A sixteen-by-seven double door takes a heavier cable than an eight-by-seven single door, and a tall door or a heavy insulated door with windows needs longer cables on larger drums.

Extension spring systems in older homes

Some older garages in Twinbrook, Lincoln Park and East Rockville still use extension springs with cables over pulleys. Those systems need a safety cable through each spring, and the pulleys wear along with the cable. When the cables are replaced, the safety cables are checked or added, and converting to torsion springs is explained if it suits the door.

Keeping cables in good shape through the winter

• Rinse salt off the slab at the door After storms, so it does not sit on the brackets.
• Free a frozen door gently Clear the ice at the bottom before using the opener.
• Look from the floor once a month Frayed strands or a cable loose on its drum mean stop and call.

Cables usually fail with springs, so broken spring repair covers the other half of this job, and there is more on garage door repair here in Rockville.
